7 segmentos (by Manuel)
Hola
tengo 6 dígitos y quería llegar hasta 8 dígitos llego hasta 6 pero dos siguientes no se como hacerlo si alguien de el Foro me puede ayudar le agradeceré envió programa Un saludo Manuel
(no subject) (by MGP)
Could you try this?
I removed rung 38 and adjusted rungs 49 and 50. You have to be careful when using #PORTC, as this affects all 8 bits of that port. If you only need two ports, it's better to control them separately. I also see that your cycle time is 1mS, so you also have to be careful not to make your program too large, but it still looks good here. Let me know if it worked.
(no subject) (by MGP)
I think all those MOV #PORTB = 0 can be omitted.
As I wrote before, writing to #PORTx changes all the bits in that port.
(no subject) (by MGP)
I forgot to delete -(/)- Y25 & -(/)- Y26 in rung 49 & 50
(no subject) (by Manuel)
Hola
MGP no me a funcionado necesitaba 2 dígitos para los segundos segundo el programa yo lo pruebo en proteus éfeta atados los otros números envío esquema UN Saludo Manuel
(no subject) (by MGP)
The photo is way too blurry, I need a screenshot where you can read the pin numbers.
(no subject) (by MGP)
Try this one, I added in rung 49 #PORTB = 0 , otherwise it stays on 0x80 during Y25 an Y26
(no subject) (by Manuel)

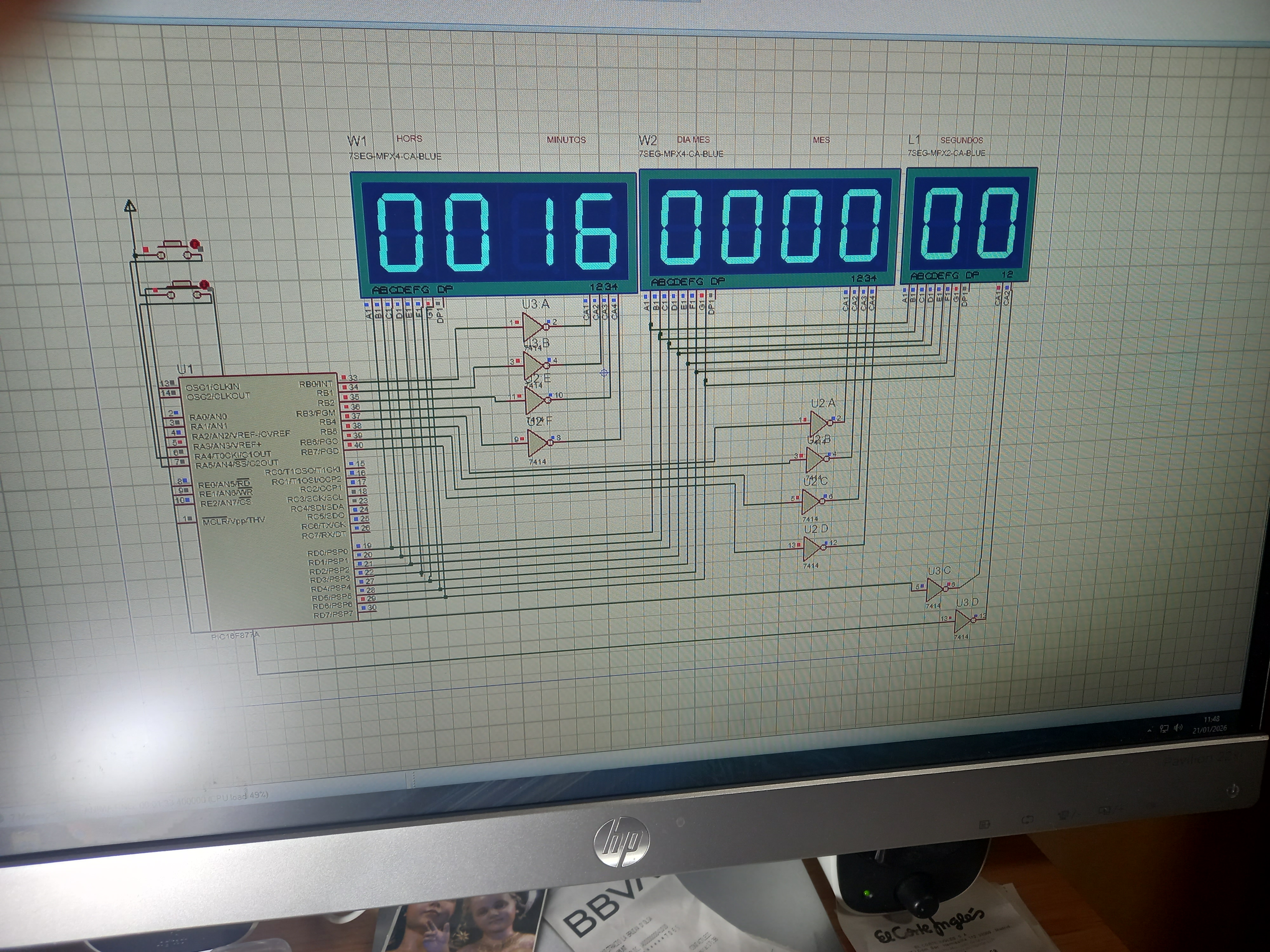

HOLA MGP TE mando foto haber sise be mejor
7 SEGMENTOS (by Manuel)
te mando foto
