Can someone compile LDmicro and fix a bug? (by MGP)
The reason is that the program memory of a 16F1512 (2k) and a 16F1516 (8k) are both currently set to 2k, while a 16F1516 has 8k of memory. They are very good and inexpensive controllers that I use regularly. Best regards and thanks.
(no subject) (by Andre)
On Sunday I'll try tinkering with it and see if it works; I'm still learning to understand the code.
https://cq.cx/ladder-forum.pl?...parent=11837&tt=1766058873 In this thread I tried to add the PIC16F630 but no one responded.
(no subject) (by MGP)
Thank you, take your time.
I do have a 16F1516 to test, but I don't have a 16F630 because they look a lot like a 16F628a and don't have an ADC onboard, which makes them less attractive.
(no subject) (by Andre)
Which version are you using?
(no subject) (by MGP)
I'm using the latest version 5.4.1.1 which can be found on Github.
https://github.com/LDmicro/LDmicro
(no subject) (by MGP)
I've also done some searching, and I think these changes should be sufficient.

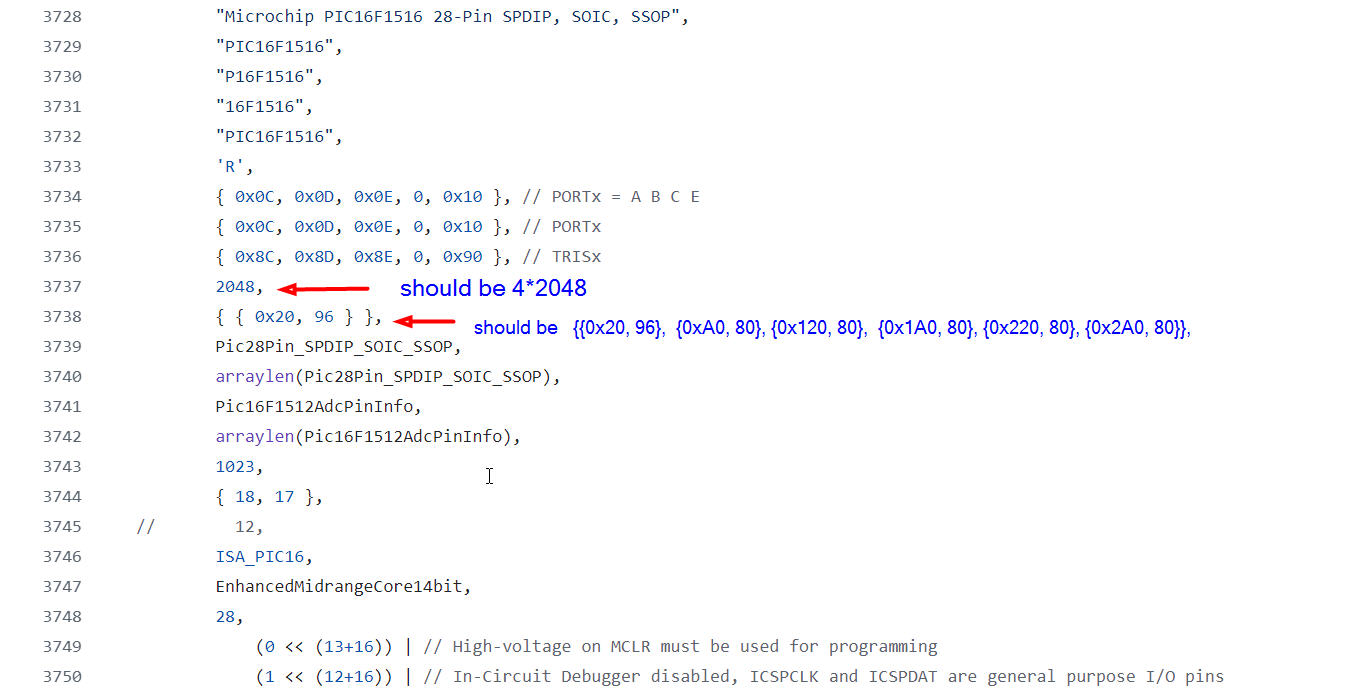

The screenshot is from mcutable.h and shows the memory capacity of the controllers. It was copied from the 16F1512 to the 16F1516 but wasn't changed to the correct numbers. The numbers in the curly brackets indicate the RAM locations. I can't compile LDmicro; it took me days, but my knowledge isn't extensive enough. If you'd like to try it, I'd do a test. Thanks.
